GK2586-6P series over-axis rotary electric slip ring has an inner diameter of 25.4 mm, an outer diameter of 86 mm, 6 electrical channels, optional gold-plated contacts to extend the life to 50 million revolutions, protection level IP51, and anodized aluminum alloy shell for corrosion resistance. It can be used for rotating heads of filling equipment and indexing plates of CNC machine tools.
GK2586-6P series over-axis rotary electric slip ring Product Features:
1. The center hole is 25.4 mm, the line length is 300 mm, and it can be adapted to most devices.
2. 5A-20A current is optional, the insulation is reliable, and high voltage or high current can also be customized to cope with special applications.
3. IP51 protection, torque smoothness, upgradeable protection level, adaptable to dusty environments, and customized shell materials.
4. Small resistance change and good transmission, 6-way wiring, support terminal connection, convenient equipment installation.
GK2586-6P series over-axis rotary electric slip ring Product Parameters
| Parameter name | Parameter Value |
| Power | Signal |
| Dielectric strength | 800VCA@50Hz,60s | 300VCA@50Hz,60s |
| Insulation resistance | ≥1000MΩ/500VDC | ≥1000MΩ/300VDC |
| Dynamic resistance change value | ＜10mΩ |
| Rated voltage | 0～440VDC/VAC |
| Wire Specifications | AWG Teflon wire (actually change the wire specifications according to the load conditions) |
| Wire length | Default 300mm (can be adjusted as required) |
| Operating temperature | 0～85%RH |
| Operating humidity | -30℃～+80℃ |
| Protection level | IP51 |
| Shell material | Metal/engineering plastics |
| Rotational torque | 0.1N.m,+0.03N.m/6-way |

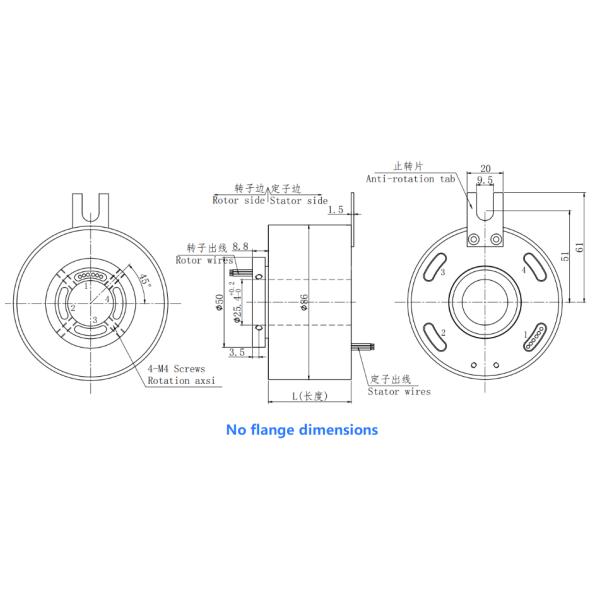

GK2586-6P series over-axis rotary electric slip ring Dimensions
GK2586-6P series over-axis rotary electric slip ring application
Wind power generation: connecting the rotating nacelle (generator, control system) with the fixed tower (grid, control system)
Industrial automation/robotics: rotating worktable/indexing plate, robot joints
Medical imaging equipment: CT scanner, X-ray machine (rotating C-arm)
Packaging machinery/filling equipment: power supply and signal control of filling head and labeling head
Testing equipment: such as turntable test, centrifugal test, etc.
Security monitoring: high-speed dome camera Ship/maritime: such as rotating radar mast, pod thruster, crane, etc.
